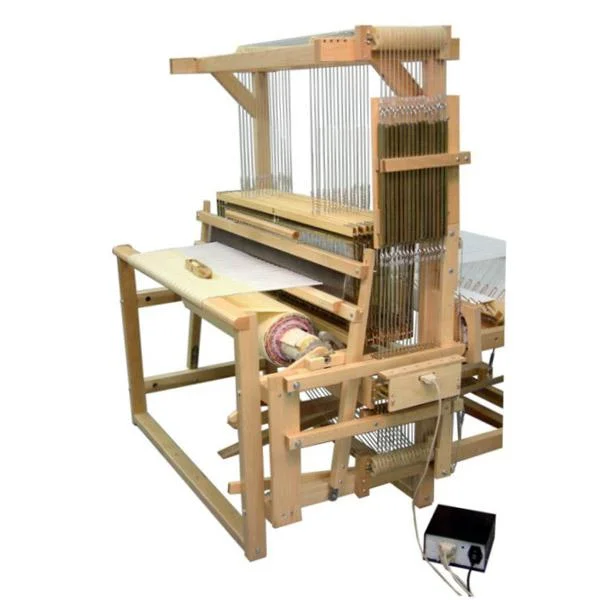

Leclerc Weavebird V2 Loom

Description

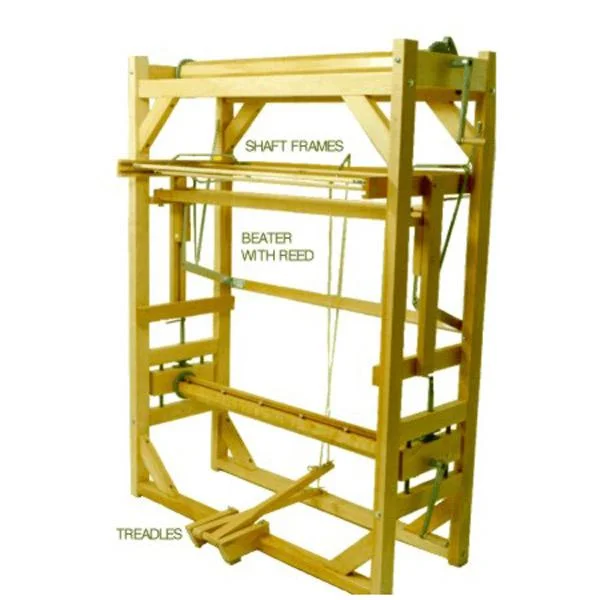

The Weavebird is a centre closed dobby shedding mechanism. There are no jacks, no lams, no tie ups, no limitations on shaft combinations and no limitations of pattern repeats.Two treadles, hinged from the back of the loom, operate the shedding mechanism. Weavebird controls both the rising and sinking shed so the tension on the warp threads is always uniformly even. Because part of the warp threads rise while the balance sink, the yarn stretch is minimized. The loom has 2 treadles. The right treadle opens the shed and the left treadle closes it. Due to Leclerc’s unique Shaft counter-weight design, physical stress to operate it is minimized. The treadling effort to operate those Loom is similar to operating a 4 shaft counterbalance loom.

Dobby Loom Information

Weavebird Floor Looms are excluded from our Free Shipping promotion.

Loom Standard Equipment:

• Interface Box
• “Weavelec” software to drive the loom from any .WIF pattern
• 1 Stainless Steel Reed  6, 8, 10 or 12 dent
• Inserted Eye Heddles 12½” or Texsolv
• 1 End Feed Shuttle 6122-8000
• 12 Pirns 6¼” 6133-6000
• 1 Reed & Heddles Hooks 10 5/8″ long
• 2 Wood lease sticks
• 4 Warp rods
• Book: “Warp & Weave”
• Assembly Instruction and Video
• Aprons
• 2 Years Warranty on all parts including the Interface box and Solenoids

Options:

• Leclerc Open End Bench
• Sectional warp beam 1″ section
• Sectional warp beam 2″ section
• Double warp beam
• Overhead Beater
• Flying shuttle beater

Optional Accessories:

• Warping Board
• Warping Mill
• Sectional Warping Kit
• Tension Box
• Corrugated Warp Separator
• Bobbin Stand
• Boat Shuttles (large and small)
• Boat Shuttle Bobbins
• Bobbin Winder
• Stick Shuttles
• Texsolv Heddles
• Weaving Bench
• Stainless Steel Reeds
• Wooden Warp Sticks
• Fringe Twister

Additional Items:

• Floor Loom Yarns
• Weaving Books

Dimensions:
